Panasas PAS 12 Unboxing

01 Mar 2011 Panasas PAS 12 Unboxing

I’ve had a Pansasas PAS-12 in my home lab for longer than I’d care to admit, now that it’s almost time to box the system up and send it away I figured it would be good to post some pictures of the system (and the unboxing …)

What follows are some of my favorite pictures. The full set can be found in my Infrastructure Flickr stream

DSC 0056

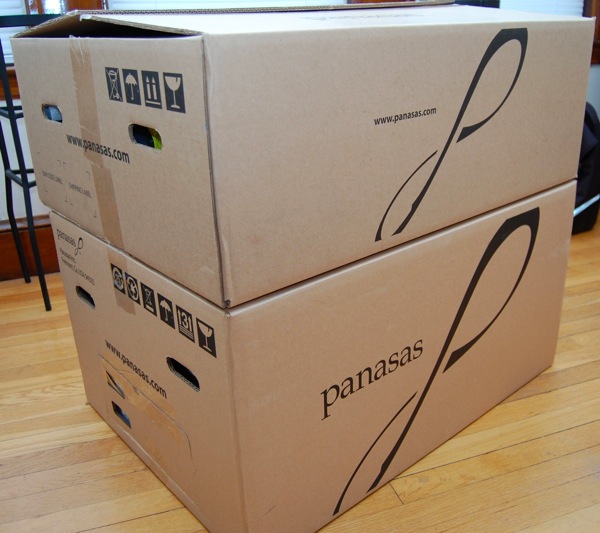

One box for the director & storage blades, one box for the chassis itself
DSC 0059

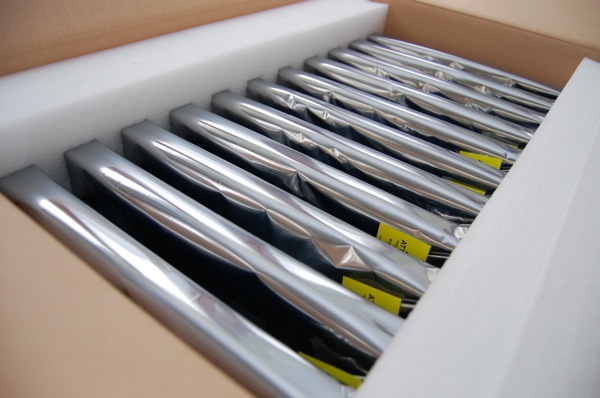

Packaged blade components
DSC 0061

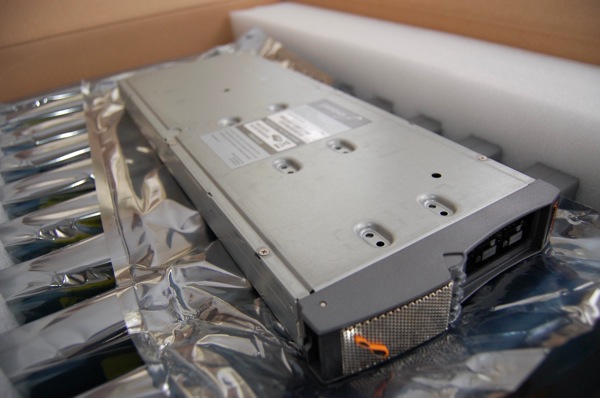

Unwrapped storage blade
DSC 0074

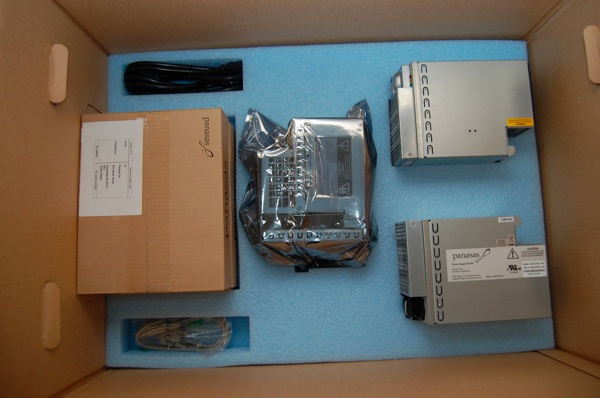

Packaging is very well done, the layer underneath the bare chassis
contains power supplies, battery unit and the misc. cables & switching blades.
DSC 0075
Battery unit macro shot
DSC 0077
Macro shot of a switching blade 1
DSC 0078

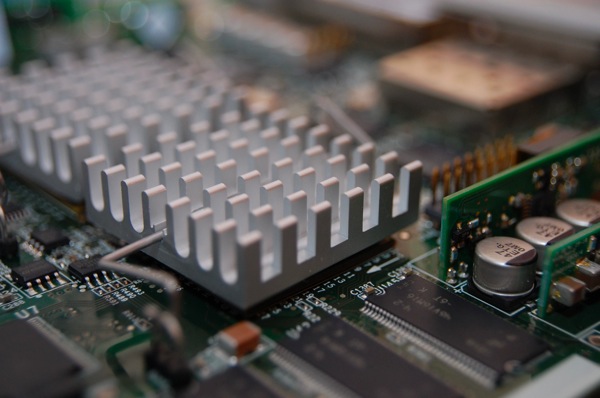

Switch blade macro 2
DSC 0079

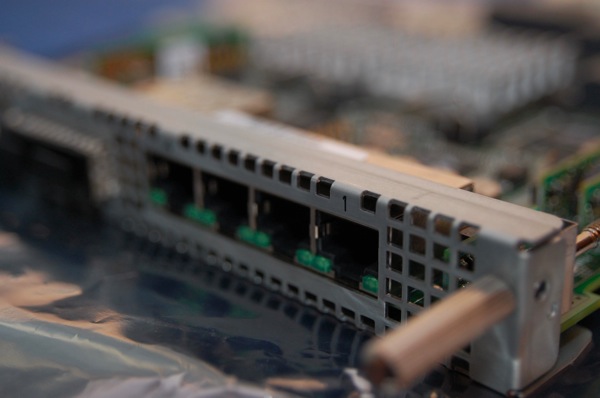

Switch blade macro 3
DSC 0103

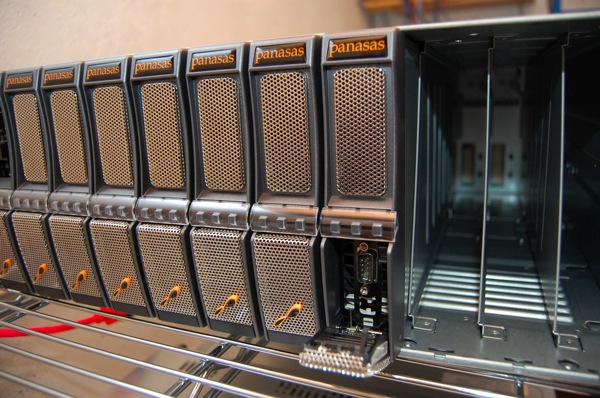

Blades partially installed

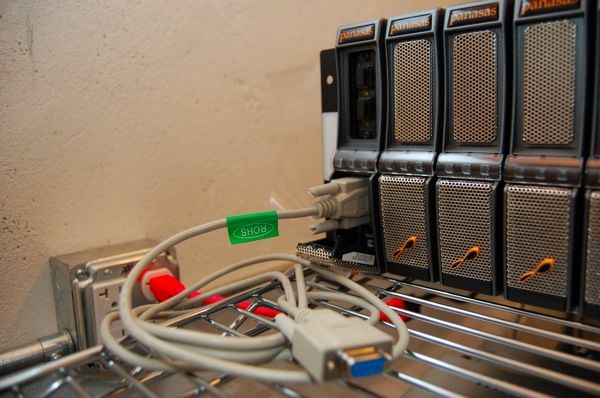

DSC 0117
The system is boostrapped by connecting a serial cable to a director blade
DSC 0134
Initial configuration via serial cable (and the very handy Keyspan USB-to-Serial adapter dongle!)
Pas12 540x250 2
Blade macro shot
Pas12 540x250

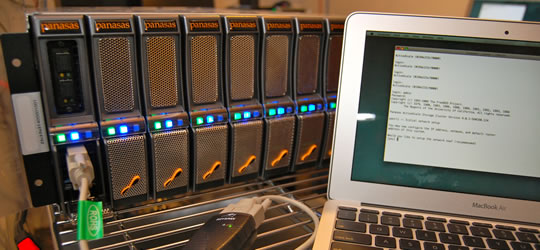

Almost online now …
Related Posts
Filter by
Post Page
Employee Posts Tech Notes Science Articles News
Sort by
  • geoff
    Posted at 21:50h, 08 June Reply

    wicked , i evaluated one of these recently with Seismic data files – the geophysicists think its the best for performance vs price – this is the way to go for big data for sure.

  • moss
    Posted at 11:52h, 28 January Reply

    i have similar one at home that i got from a friend. but i know nothing about panasas or how to plug it. no documentation on how to attach it to a server. i saw 2 switch blades in the back of chassi. i don’t have any cable with it. and i don’t know what cables i need to get for it. any help on that and how to attach it to my server?
    i appreciate your help

    • Adam
      Posted at 05:17h, 08 January Reply

      Hi. I’ve also got hold a bunch of these a few days ago ? Any luck with it ?
